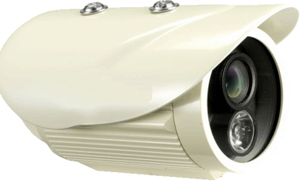

H2plus
Features
- 1/3" SONY SUPER HAD CCD
- 700 TVL High Resolution Camera
- 0.1 Lux @F1.4 (color) Horizontal:355°
- Fixed Board Lens 3.6 MM/6 MM LENS
- AGC, AWB and BLC
- CE, FCC and RoHS Certified
|
Features |
Specification |
| Model | LB-033 C |
| Series | 1 |
|
Image Sensor |
1/3" SONY SUPER HAD CCD |
|
H-Resolution |
700 TVL |
|
Min. Illumination |
0.1 Lux @F1.4 (color) Horizontal:355° |
|
S/N Ratio |
more than 48db |
|
White balance |
ATW |
|
Effective Pixels |
PAL: 752(H) X 582(V); NTSC: 768(H) X 494(V) |
| Lens | Fixed Board Lens 3.6 MM/6 MM LENS |
| Sync System | Internal |
| OSD | NO |
| C.Video Output | CVBS 1.0Vp-p /75 (ohMS) |
| Input Volatage | DC 12V ±10% |
| Operating Temp. | -10~50 °C |
| Day & Night | NO |
| IR | 50 mts, 48 LEDS |
